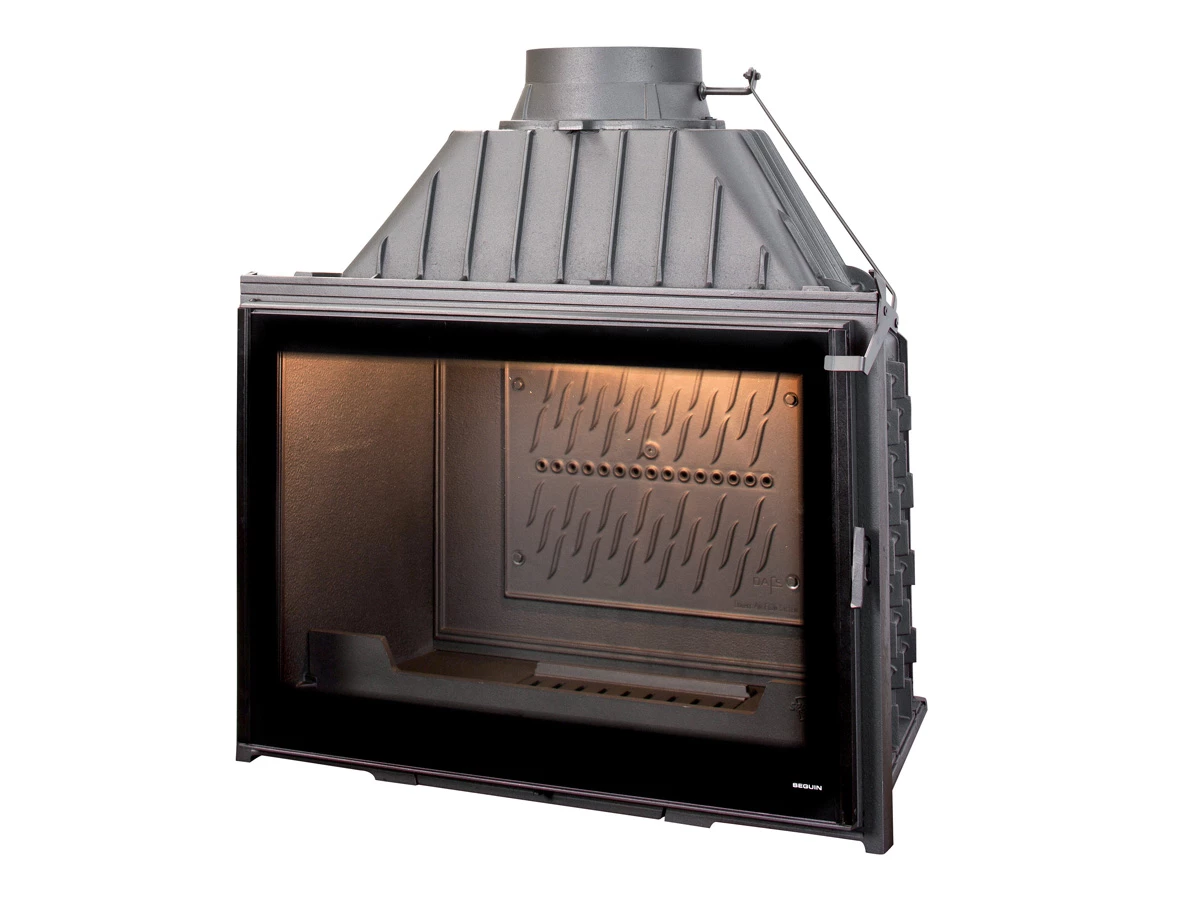

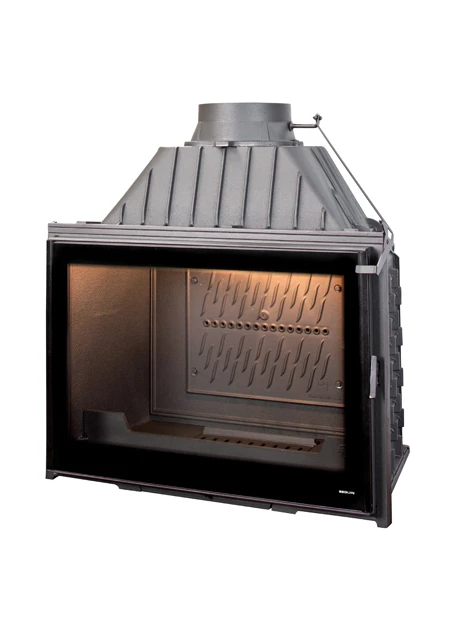

The firebox / insert SUPER 9

Réf : F1300

No reviews so far
Features
The firebox / insert SUPER 9 Technical information

Générales

  • Smoke outlet : 250 mm
  • Weight : 230 kg version de base
  • Size logs : 80 cm
  • In compliance with : CEN/TS15883

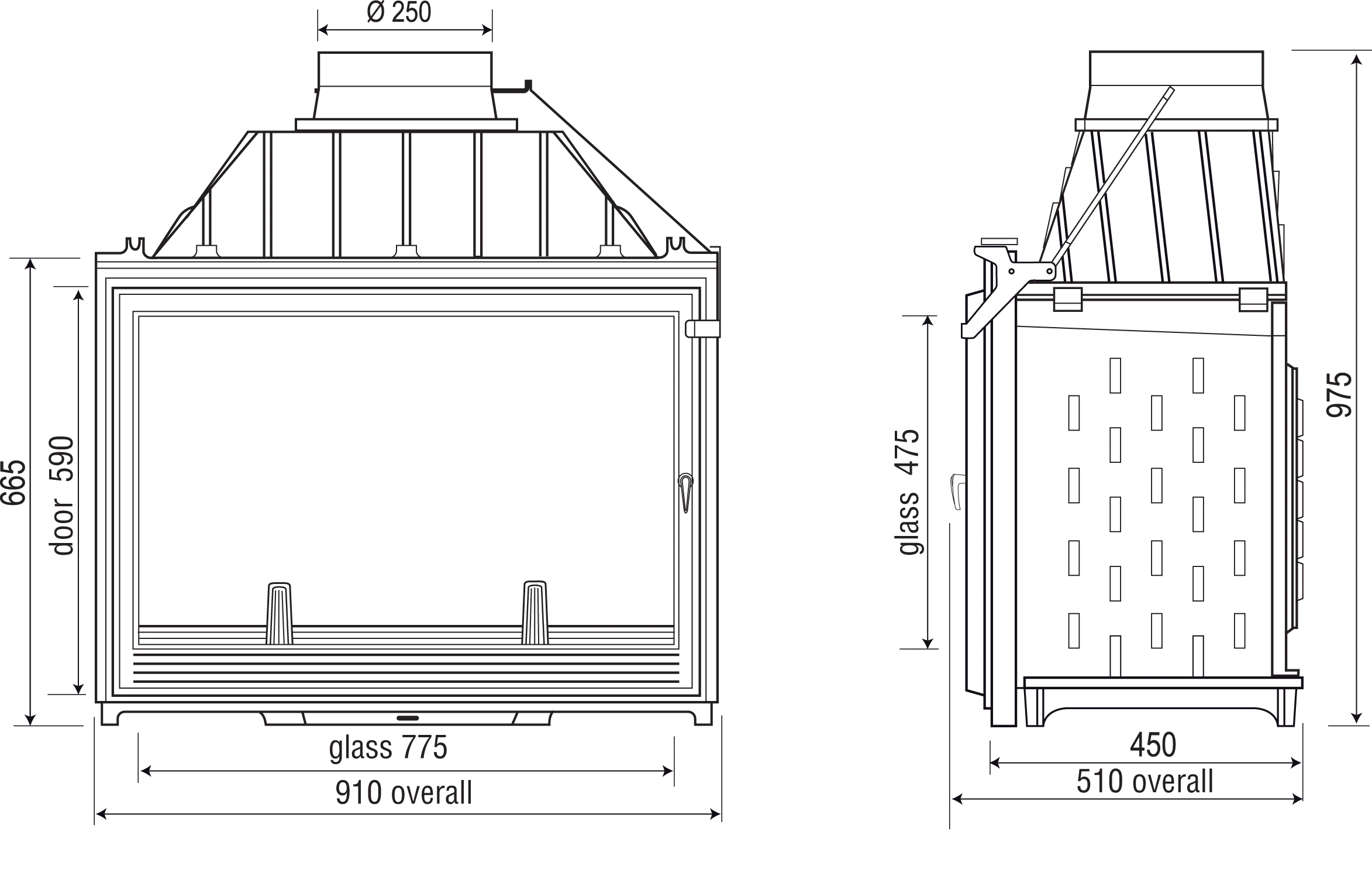

  • Size : L 91 x P 51 x H 98 cm
  • Maximum hourly consumption : 4 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Seasonal energy efficiency : 67 %
  • Nominal output : 12,7 kW
  • Maximum output : 24 kW (indicatif)
  • CO Rate : 0,08 %
  • Particles emission (mg/Nm3) : 29 mg/Nm3
  • Efficiency : 77,3 %

- Damper: with adjustable sealing - Swing-door: the door is blocked when the damper is closed - Lift door : the damper automatically opens at the door opening. Options : - Lift door - Convector - black screen printed glass door - Brass or stainless steel decoration around the door - Adapter for double combustion connection Ref : A0210

SUPER 9
