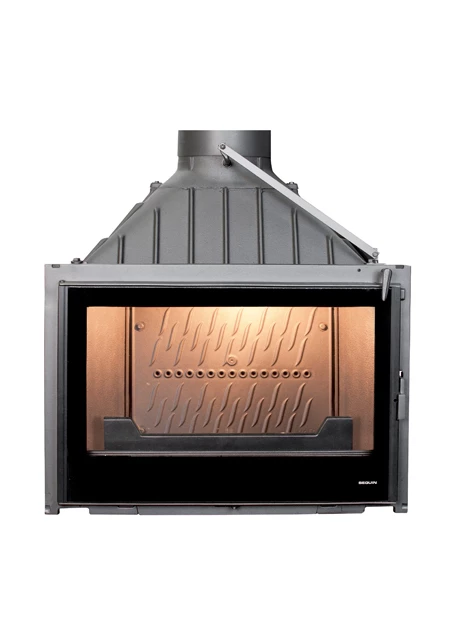

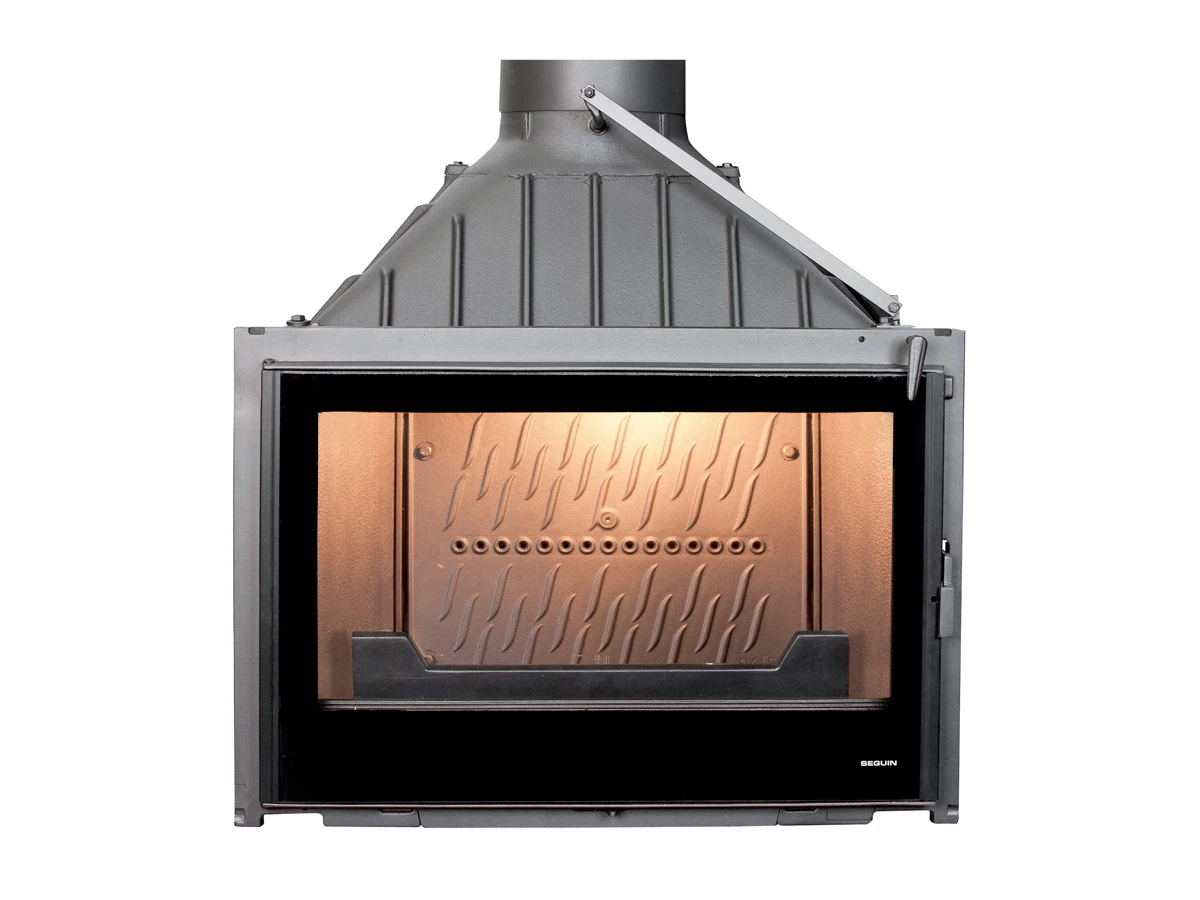

The firebox / insert VISIO 7

cast iron firebox - single sided

Réf : F1900

No reviews so far
Features
The firebox / insert VISIO 7 Technical information

Générales

  • Smoke outlet : 200 mm
  • Weight : 145 kg version de base
  • Max logs size : 50 cm
  • In compliance with : CEN/TS15883
  • Size : L 71 x P 55 x H 75 cm
  • Maximum hourly consumption : 3 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Nominal output : 10 kW
  • CO Rate : 0,11 %
  • Particles emission (mg/Nm3) : 20 mg/Nm3
  • Efficiency : 79 %

Not optional: swing door : the door is locked on closing when the damper is closed, double combustion, cast iron interior finishing, cast iron firebox, damper with adjustable flow rate, black-screen printed glass Optional(s): lift and swing door, convector (installed on firebox with 2 caps and ø 125 sleeve), fresh air intake adaptor A0211 for ø 100 sheath, uplift chair adjustable from 300 to 550, adapter for double combustion air connection / ø 100 sheath Configuration: single sided Variations: insert, single sided, airtight version, PLUS version, airtight PLUS version, IHS airtight PLUS version

VISIO 7
