The firebox / insert EUROPA 7 EVOLUTION PLUS

cast iron firebox - single sided

Réf : F0400EP

No reviews so far
Features

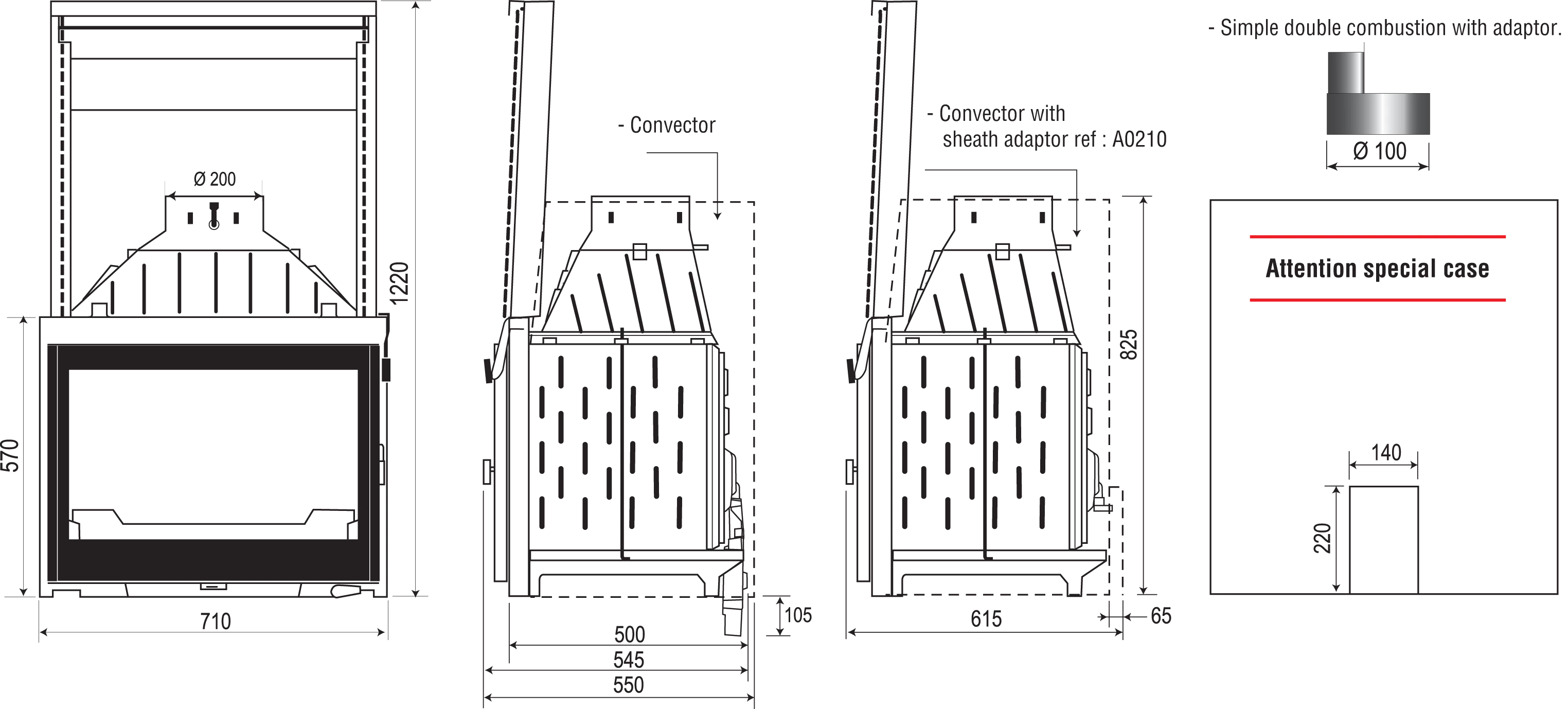

The firebox / insert EUROPA 7 EVOLUTION PLUS Technical information

Générales

  • Smoke outlet : 200 mm
  • Weight : 205 kg
  • Max logs size : 45 cm
  • In compliance with : EN 13229
  • Size : L 71 x P 55 x H 83 cm
  • Maximum hourly consumption : 3 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Nominal output : 9,8 kW
  • CO Rate : 0,1 %
  • Particles emission (mg/Nm3) : 25 mg/Nm3
  • Efficiency : 78,8 %

Not optional: swing door : the door is locked on closing when the damper is closed, double combustion, refractory ceramic interior finishing, cast iron firebox, damper with adjustable flow rate Optional(s): black-screen printed glass, lift and swing door, convector (installed on firebox with 2 caps and ø 125 sleeve), fresh air intake adaptor A0211 for ø 100 sheath, self cleaning glass (not black screen printed) uplift chair adjustable from 300 to 550, adapter for double combustion air connection / ø 100 sheath Configuration: single sided Variations: single sided EVOLUTION version, glass sided EVOLUTION version with desing or cast iron door, three sided EVOLUTION version

EUROPA 7 EVOLUTION PLUS
