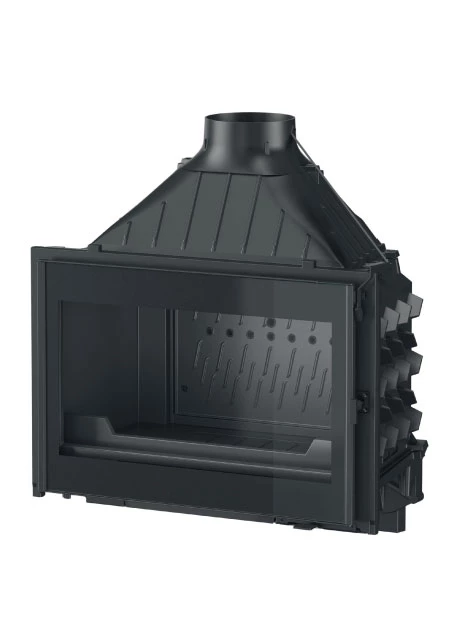

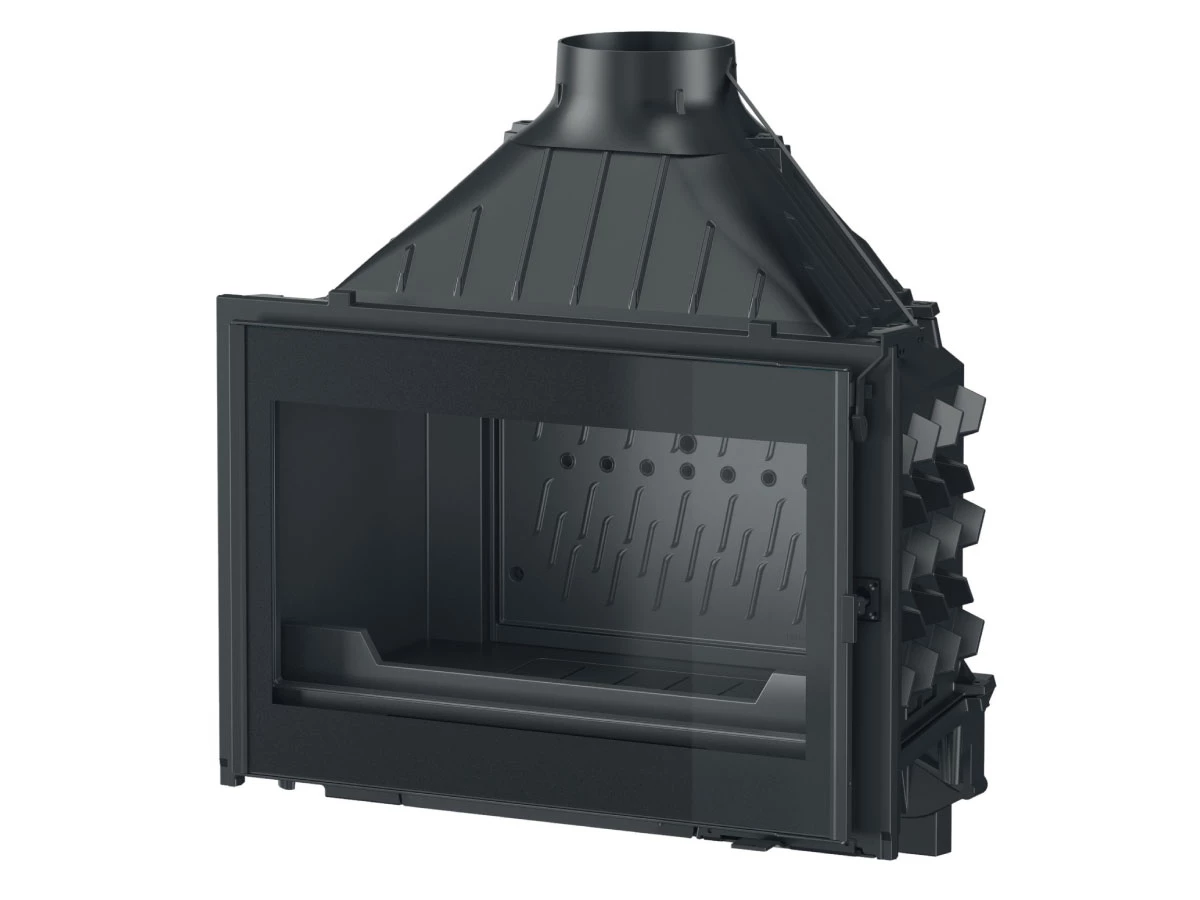

The firebox / insert VISIO 8

cast iron fireplace - front side

Réf : F1800

No reviews so far
Features
The firebox / insert VISIO 8 Technical information

Générales

  • Smoke outlet : 200 mm
  • Weight : 169 kg version de base
  • Max logs size : 65 cm
  • In compliance with : CEN/TS15883

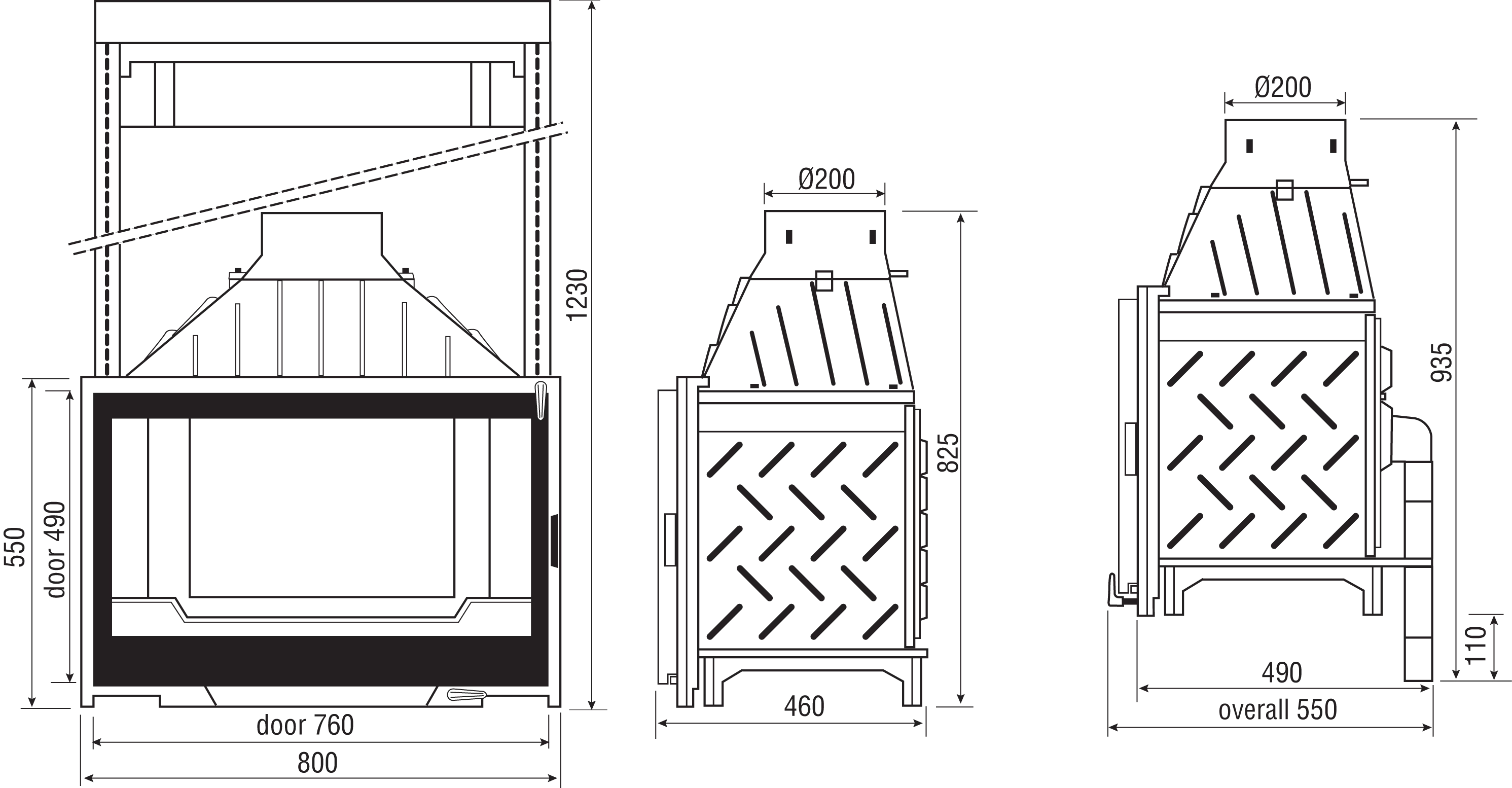

  • Size : L 80 x P 54 xH 83 cm
  • Maximum hourly consumption : 3 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Seasonal energy efficiency : 67 %
  • Nominal output : 11 kW
  • Maximum output : 19 kW (indicatif)
  • CO Rate : 0,09 %
  • Particles emission (mg/Nm3) : 26 mg/Nm3
  • Efficiency : 77,8 %

As standard: swing door : the door cannot be opened when the damper is closed, double combustion, cast iron back, cast iron fireplace, damper with adjustable flow rate, black-screen printed glass Optional(s): lift and swing door, convector (installed on fireplace with 2 caps and ø 125 sleeve), air inlet connection adaptor A0211 for ø 100 air duct, fireplace extension kit adjustable from 300 to 550 in height, adapter for double combustion air connection / ø 100 air duct Configuration: front side Variations: right or left side glass, front side PLUS version

VISIO 8
