The firebox / insert VISIO 8 PLUS

cast iron fireplace - front side

Réf : F1800P

No reviews so far

Interested in this product ?

Features

The firebox / insert VISIO 8 PLUS Technical information

Générales

Smoke outlet : 200 mm
Weight : 220 kg
Max logs size : 55 cm
In compliance with : CEN/TS15883

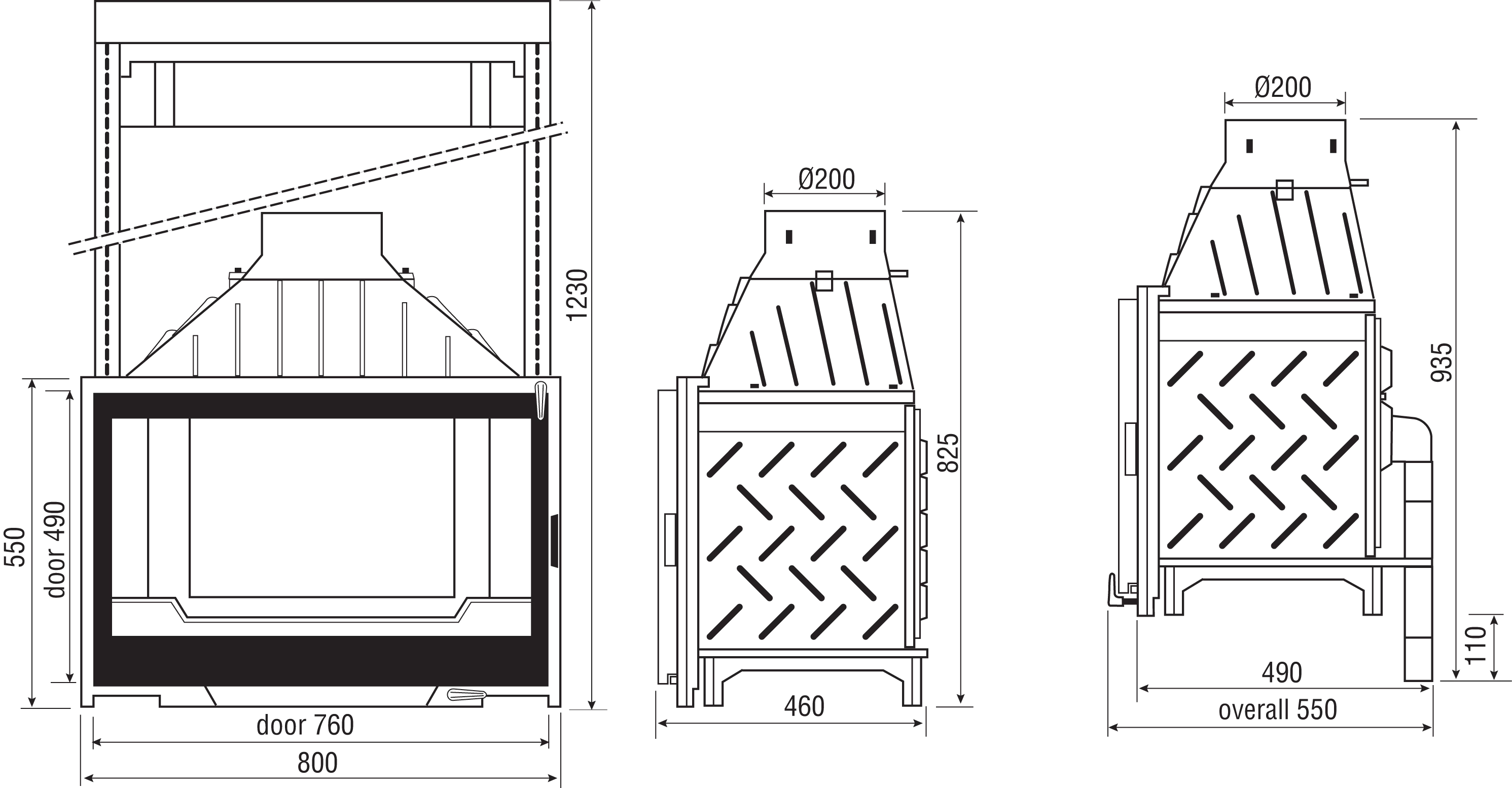

Size : L 80 x P 54 x H 83 cm
Maximum hourly consumption : 3 kg/h

Type de contrôle de régulation

Régulation manuelle

Seasonal energy efficiency : 67 %
Nominal output : 11 kW
Maximum output : 19 kW (indicatif)
CO Rate : 0,09 %
Particles emission (mg/Nm3) : 26 mg/Nm3
Efficiency : 77,8 %

As standard: swing door : the door cannot be opened when the damper is closed, double combustion, back in refractory ceramic, cast iron fireplace, damper with adjustable flow rate, black-screen printed glass Optional(s): lift and swing door, convector (installed on fireplace with 2 caps and ø 125 sleeve), air inlet connection adaptor A0211 for ø 100 air duct, fireplace extension kit adjustable from 300 to 550 in height, adapter for double combustion air connection / ø 100 air duct Configuration: front side Variations: front side, right or left side glass
