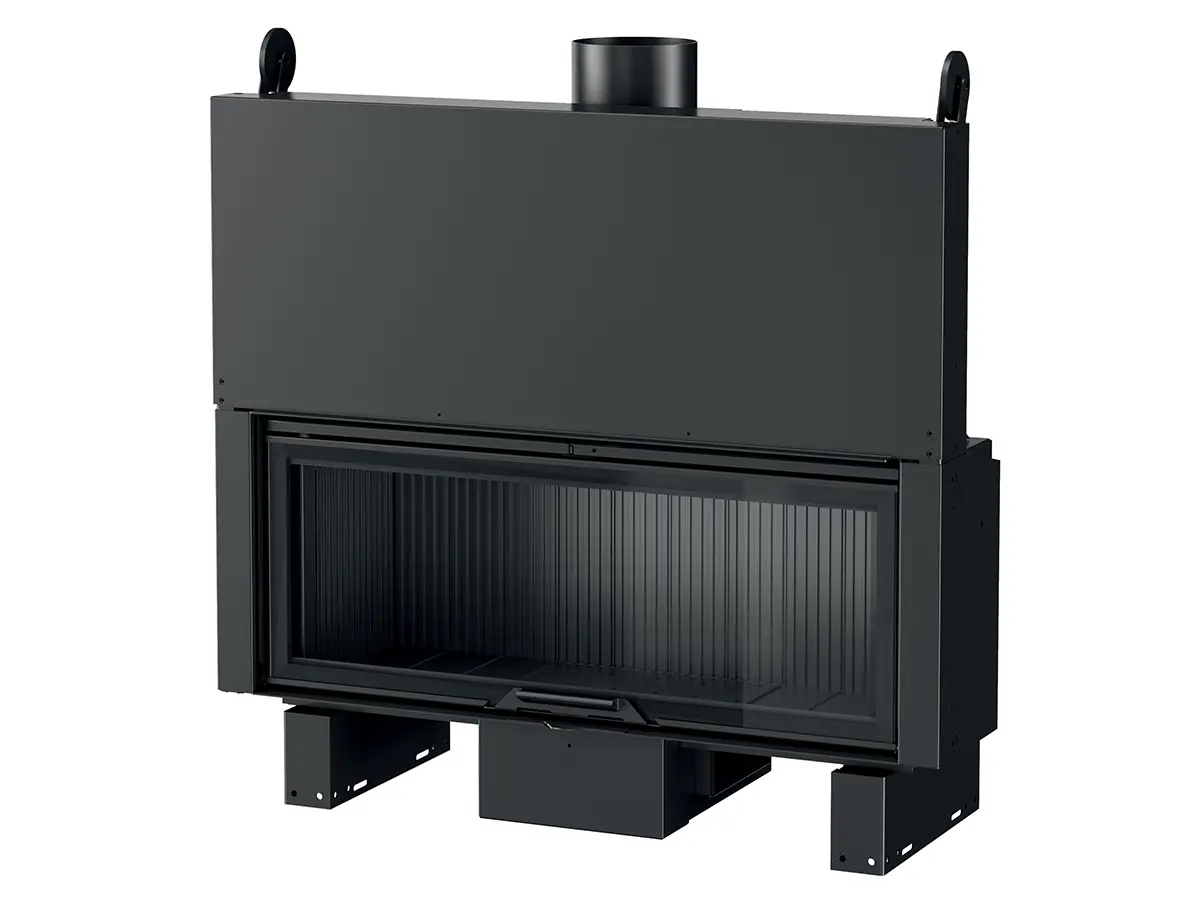

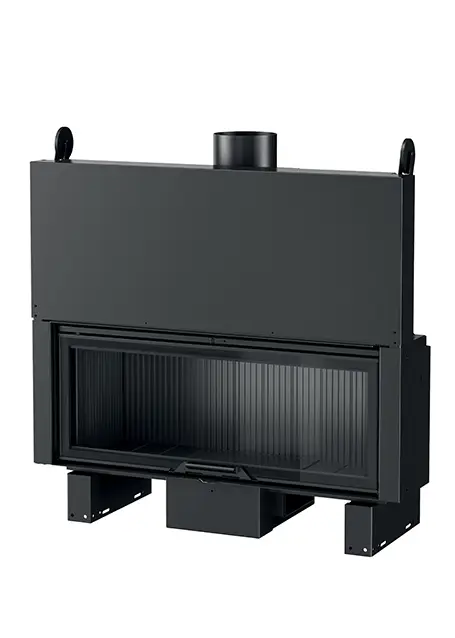

The firebox / insert FAE 120

steel fireplace - front side

Réf : FAE120SF

No reviews so far
Features
The firebox / insert FAE 120 Technical information

Générales

  • Smoke outlet : 200 mm
  • Weight : 300 kg
  • Max logs size : 90 cm
  • In compliance with : CEN/TS15883
  • Double combustion : Yes
  • Size : L 122 x P 50 x H 123 cm
  • Maximum hourly consumption : 3,8 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Seasonal energy efficiency : 66 %
  • Nominal output : 12,5 kW
  • CO Rate : 0,1 %
  • Particles emission (mg/Nm3) : 35 mg/Nm3
  • Efficiency : 76,6 %

As standard: lift and tilt and turn door (for cleaning), double flow, grooved cast iron back, steel fireplace, airtight fireplace, black-screen printed glass, Optional(s): grey or beige grooved brick back Configuration: front side Variations: 3 dimensions

FAE 120
