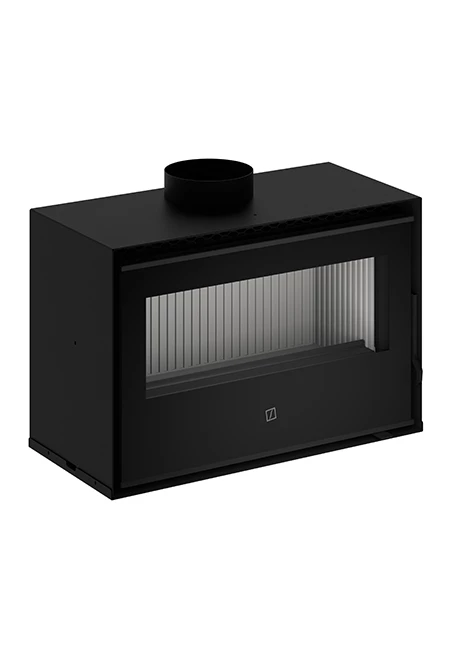

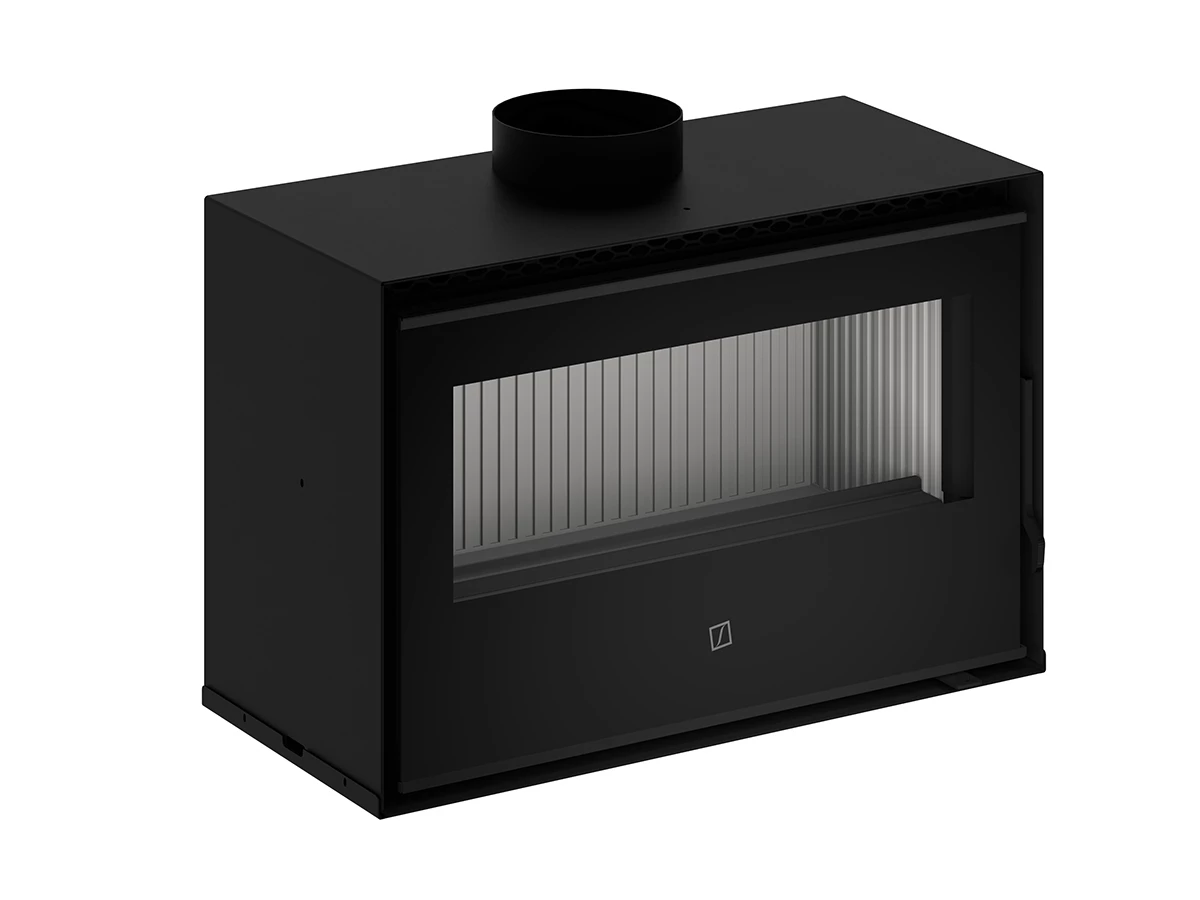

The firebox / insert INSERT 750

steel insert - front side

Réf : IN0750SF

No reviews so far
Features
The firebox / insert INSERT 750 Technical information

Générales

  • Smoke outlet : 150 mm
  • Weight : 140 kg
  • Max logs size : 50 cm
  • In compliance with : CEN/TS15883
  • Double combustion : Yes

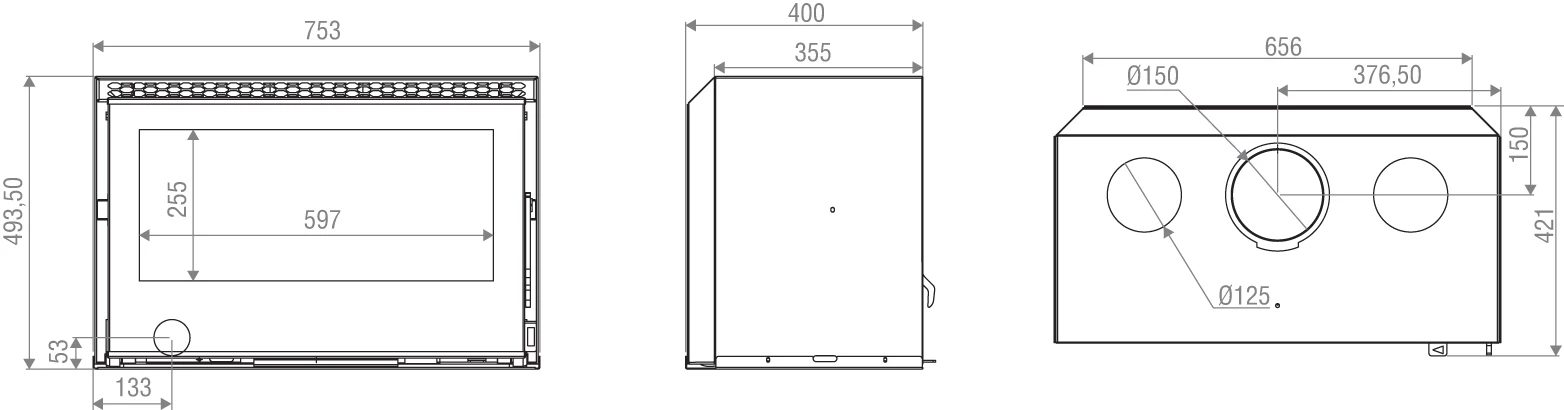

  • Size : L 75 x P 40 x H 49 cm
  • Maximum hourly consumption : 2,2 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Seasonal energy efficiency : 66 %
  • Nominal output : 7,5 kW
  • CO Rate : 0,09 %
  • Particles emission (mg/Nm3) : 37 mg/Nm3
  • Efficiency : 76,1 %

As standard: swing door, grey grooved brick back, steel fireplace, black-screen printed glass Optional(s): beige grooved brick back, fan Configuration: front side Variations: 5 dimensions, front side

INSERT 750
